Viscocity : 10W-40
1.3L(full)
1.1L(replacement)
Instrukcja: strona 59
Sprawdzanie poziomu oleju
CAUTION
Stand the vehicle by main stand and check
- Do warming up the engine and warm up the engine oil enough.

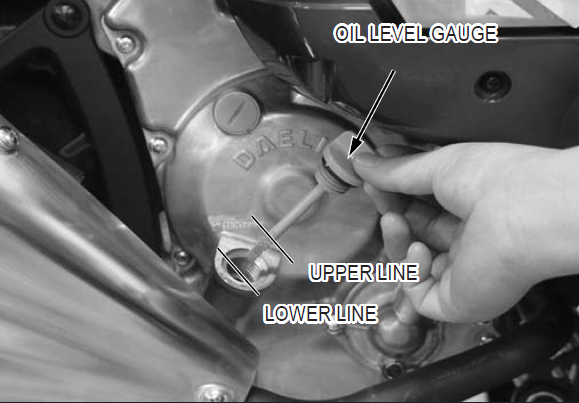

- Stop the engine and loosen oil level gauge, clean oil in gauge by cleaned towel. Rotate level gauge and insert it to check the oil capacity.
- If the oil is between the upper and lower level, it is OK. If the oil is close or below the lower level, replenish it to the upper level.
Wymiana oleju
NOTE
Make the engine warm and erect the motorcycle with side stand in order to assure complete and rapid draining.

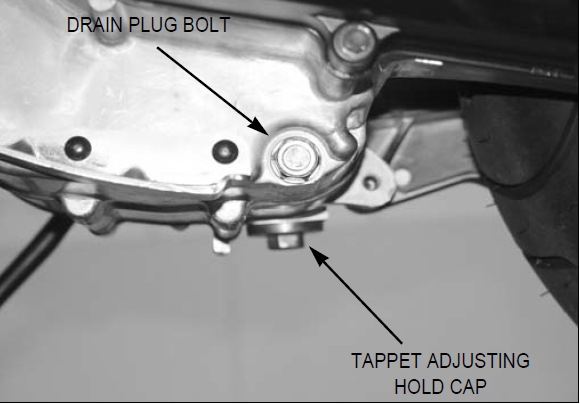

- Untie oil drain plug bolt and pull out oil.
- Disassemble tappet adjusting hole cap

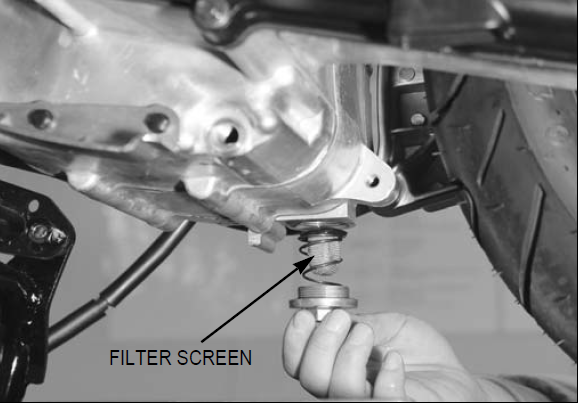

- Clean filter screen by cleaned cleansing oil
- Check whether tappet adjusting hole cap o-ring is good or not
- Assemble tappet adjusting hole cap according specified torque. TORQUE : 1.5 kgf·m

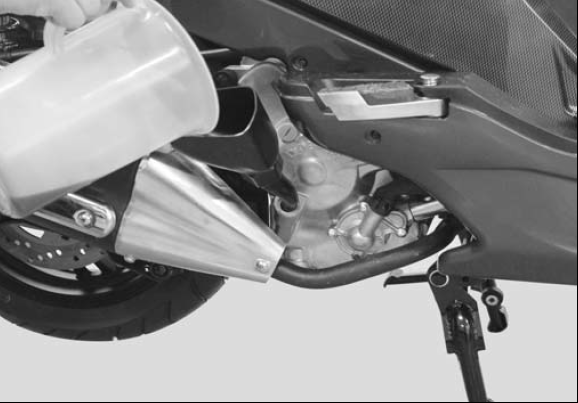

- Fill the recommended engine oil with engine oil cap
- Start the engine and let it idle for a few minutes.
- Stop the engine and check the engine oil level. If the oil level is low, add the recommended engine oil.
- Check to see if the oil is leak.
